Durable, long-lasting belt cleaner made of high-quality polyurethane material for optimal performance. The manufacturing process has been re-engineered to be faster and more efficient, which means lower purchasing costs for you. Maintenance costs are much lower because the blades last longer and are built with the industry's strongest hosts.

Inquiry

Write a Review

Product Introduction

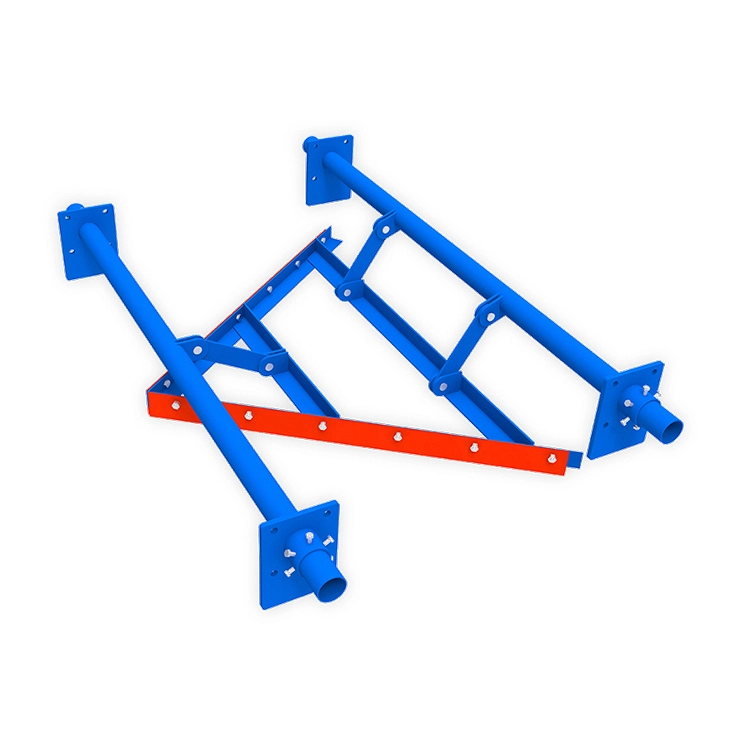

Non working PU V-Plow Belt Cleaner Machine is installed on the return belt at the front end of the reversing roller at the end of the belt conveyor, and cleans the residue on the upper surface of the return belt, so as to avoid the residual material being clamped in the tail roller and causing damage to the conveyor belt and the roller.

The manufacturing process has been re-engineered to be faster and more efficient, which means lower purchasing costs for you.

Maintenance costs are much lower because the blades last longer and are built with the industry's strongest hosts.

Advantage

● The cleaning blade is made of high-strength polyurethane, which has high strength, high wear resistance, high elasticity, low friction coefficient, will not cause damage to the conveyor belt, and has a long service life.

● The unique plow cleaning structure makes it easier to remove the residue on the surface of the conveyor belt.

● After the blade is worn, the blade compensation can be automatically adjusted according to the self-weight of the cleaner.

Features

● Urethane belt scraper

● Installed on the non working area of conveyor belts

● Easy to replace and install

Quality Certifications

Conveyor Belt Splicing Rubber

● Tie Gum
● Cover Rubber
● Belt Noodle Gum

Order Option

When order or inquiry, pls offer below informaiton:

Conveyor Belt Width	800/1000/1200/1600/1800/2000/2400mm
What materials are transported	Cement, coal, sticky materials,.....
What is the speed of the conveyor belt	300/500/800/1000/1200/1600fpm
On-site installation guidance	Yes or No

Product Details

1 (15)

2 (14)

3 (12)

4 (10)

5 (7)

6 (4)

More parameters

Material	Polyurethane & Carbon Steel	Product Inspection	Available
Model	ZJCLEAN-V	Lead Time	Ready to ship in stock
Colour	Blue, Orange, Custom Colours	MOQ	1 Set
Belt Width	650mm-2400mm	Warranty	6 Months
Belt Speed	Up to 1600 fpm (8 m/s)	Supply Capacity	450 units / month
Temperature	Between -30 degrees F and 180 degrees F	Certification	ISO9001;ISO14001;ISO45001;CE;UPEM
Corrosive Conditions	YES	Packing	Pallet, wooden case
Underground Applications	YES	Delivery Time	1～3units，3-5days/5～8units，7-10days

Product Specifications

More customised sizes on request

Order No.	Product Name	Belt Width(mm)	Blade Width(mm)
ZJCLEAN-V-650	V-Plow Belt Cleaner	650	650
ZJCLEAN-V-800	V-Plow Belt Cleaner	800	800
ZJCLEAN-V-1000	V-Plow Belt Cleaner	1000	1000
ZJCLEAN-V-1200	V-Plow Belt Cleaner	1200	1200
ZJCLEAN-V-1400	V-Plow Belt Cleaner	1400	1400
ZJCLEAN-V-1600	V-Plow Belt Cleaner	1600	1600
ZJCLEAN-V-1800	V-Plow Belt Cleaner	1800	1800
ZJCLEAN-V-2000	V-Plow Belt Cleaner	2000	2000
ZJCLEAN-V-2200	V-Plow Belt Cleaner	2200	2200
ZJCLEAN-V-2400	V-Plow Belt Cleaner	2400	2400

FAQs

How long will your rubber sheets last?

Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.

How can I get some samples?

We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.

Can I visit your factory?

Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
