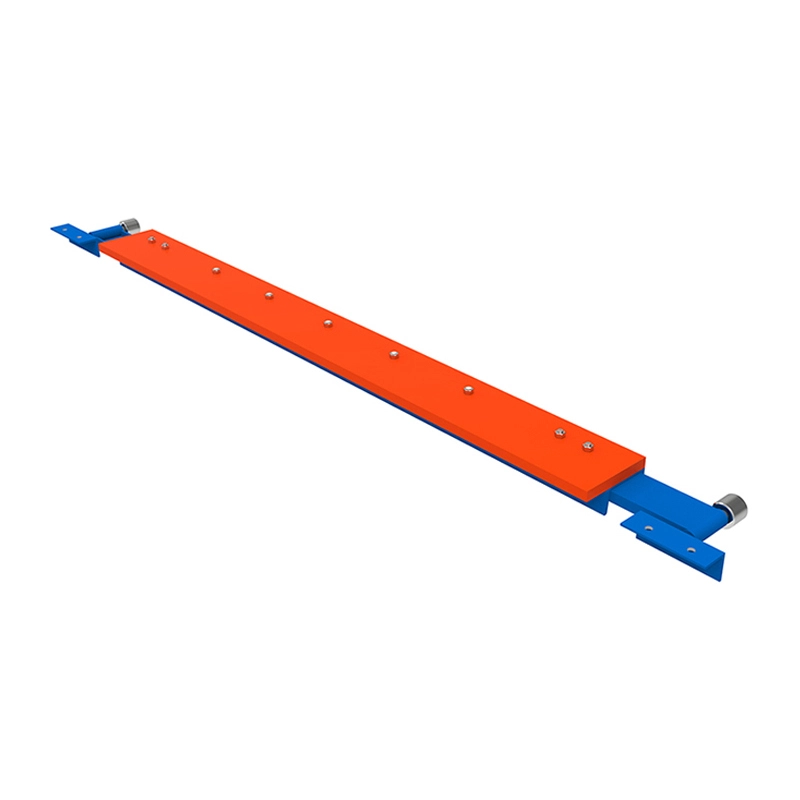

PU I-Plow Belt Cleaner Machine For cleaning up residual material 1

PU I-Plow Belt Cleaner Machine For cleaning up residual material 2

PU I-Plow Belt Cleaner Machine For cleaning up residual material 3

PU I-Plow Belt Cleaner Machine For cleaning up residual material

I-Plow belt cleaner is located in non-working face of the tail pulley position to clean the little residule materials. Used to cleaning the last residule materials before them rolled in space between drum and belt.

I-Plow Belt Cleaner Machine is installed at the tail of the belt conveyor, 1.5m-3m away from the tail wheel on the flat surface of the return belt, the blade is attached to the non-working surface of the belt by the tensioner spring, and the spilled materials are cleaned up to prevent the tail material from entering the tail wheel, causing belt damage and deviation. Bidirectional ""I-type"" cleaners are suitable for belt conveyors operating in both directions.

Inquiry

Write a Review

Difficulty

● High-speed conveyor line

● Supports bidirectional use

● High temperature conveyor line

● Scraper replacement hassle

● Blade wears too fast

● Frequent adjustment of locking is time-consuming and labor-intensive

Advantage

● The cleaning blade is made of high-strength polyurethane, which has high strength, high wear resistance, high elasticity, low friction coefficient, will not cause damage to the conveyor belt, and has a long service life.

● After the blade is worn, the blade compensation can be automatically adjusted according to the self-weight of the cleaner.

● The latest spring tensioning style is optional, which can make the cleaner better fit the conveyor belt, and the cleaning effect is more stable and efficient.

Quality Certifications

Conveyor Belt Splicing Rubber

● Tie Gum
● Cover Rubber
● Belt Noodle Gum

Specifications

Outline design and installation drawings.

01 (17)

Product Details

I空段清扫器04 (2)

I空段清扫器05 (2)

I空段清扫器06 (2)

mmexport1521452812644

Product Parameters

Material	Polyurethane+Steel	Underground Applications	YES
Model	ZJCLEAN-I	Product Inspection	Available
Colour	Customised production	Lead Time	Ready to ship in stock
Belt Width	650mm-2400mm	MOQ	1 Set
Belt Speed	Up to 1000 fpm (5m/s)	Warranty	6 Months
Hardness	85 Shore A	Supply Capacity	450 units / month
Feature	Wear-Resistant,Adjustment,Design	Certification	ISO9001;ISO14001;ISO45001;CE;UPEM
Temperature	Between -35 degrees F and 185 degrees F	Packing	Pallet, wooden case
Corrosive Conditions	YES	Delivery Time	1～5units，1-3days/10～20units，3-5days

Product Specifications

More customised sizes on request

Order No.	Product Name	Belt Width(mm)	Blade Width(mm)	Installation Site
ZJCLEAN-I-650	I-Plow Belt Cleaner Machine	650	650	Return Belt Tail Drum
ZJCLEAN-I-800	I-Plow Belt Cleaner Machine	800	800	Return Belt Tail Drum
ZJCLEAN-I-1000	I-Plow Belt Cleaner Machine	1000	1000	Return Belt Tail Drum
ZJCLEAN-I-1200	I-Plow Belt Cleaner Machine	1200	1200	Return Belt Tail Drum
ZJCLEAN-I-1400	I-Plow Belt Cleaner Machine	1400	1400	Return Belt Tail Drum
ZJCLEAN-I-1600	I-Plow Belt Cleaner Machine	1600	1600	Return Belt Tail Drum
ZJCLEAN-I-1800	I-Plow Belt Cleaner Machine	1800	1800	Return Belt Tail Drum
ZJCLEAN-I-2000	I-Plow Belt Cleaner Machine	2000	2000	Return Belt Tail Drum
ZJCLEAN-I-2200	I-Plow Belt Cleaner Machine	2200	2200	Return Belt Tail Drum
ZJCLEAN-I-2400	I-Plow Belt Cleaner Machine	2400	2400	Return Belt Tail Drum

FAQs

How long will your rubber sheets last?

Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.

How can I get some samples?

We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.

Can I visit your factory?

Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
