Constant Pressure Primary belt Cleaner

The primary cleaner blade is made of polyurethane material and has the characteristics of abrasion resistance, corrosion resistance, hydrolysis resistance, on damage to the belt, no stickiness to the material and long service life.

One thing that everyone understands is that the primary cleaner is the most important part of the conveyor belt cleaning system, it is located under the head drum and is the first step in cleaning the whole system, 90% of the residual material can be cleaned through it during transport.

It is therefore necessary to ensure the strength of the frame and drawcord, as well as the wear resistance of the blades, which will affect the overall effectiveness of the product.

Inquiry

Write a Review

Difficulty

● High-speed conveyor line

● Difficult to clean up muddy bulk

● High temperature conveyor line

● Scraper replacement hassle

● Blade wears too fast

● Frequent adjustment of locking is time-consuming and labor-intensive

Advantage

● The in-line scraper has a hollow buffer hole, which has good followability to various belts, and is matched with holes and pins.

● The scraper and the fixed seat are combined with a dovetail groove, and there is a top tightening device to eliminate the clearance.

● Aluminum alloy knife holder, surface anodized, not easy to rust.

● It has a detachable fixing seat, which can be extracted from the side of the hopper, which is very easy to install or maintain.

● The use of pre-pressure regulator (buffer spring group) can ensure a uniform and stable contact pressure between the scraper and the belt for a long time, and can be fine-tuned if necessary to ensure the scraping effect.

● The position of the scraper can be adjusted by adjusting the screw of the scraper group, which is more suitable for the scene.

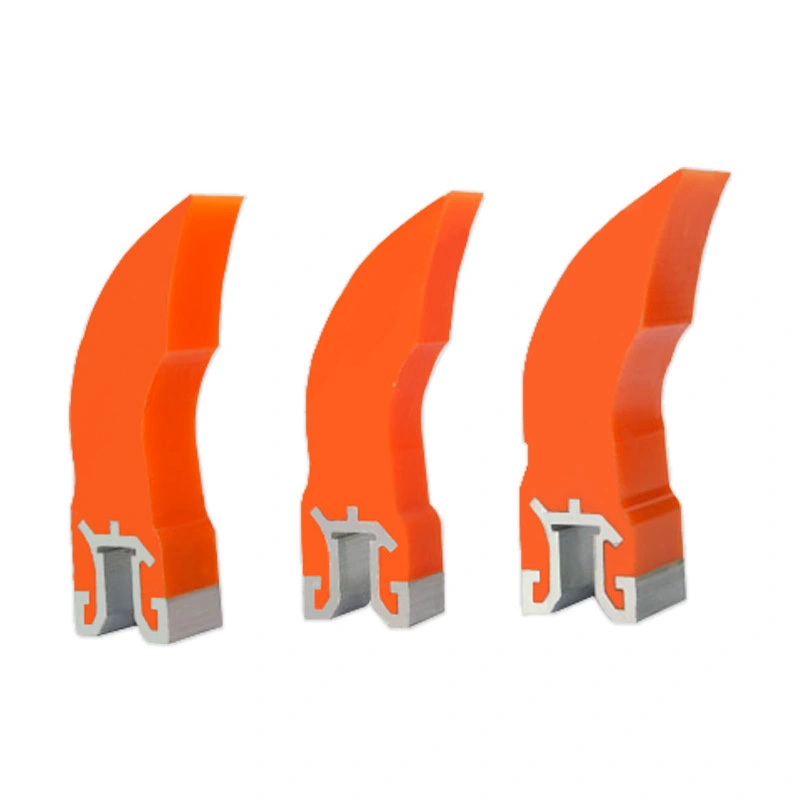

Blade Part

This part touch conveyor belt bottom surface to clean the material on it.

● Wear abrasive Polyurethane materail

● Color can be customized

● Temperature from -20 to 120°C available

● Blade is detachable

● Used in power plant, mining, port, cement plant

Quality Certifications

Conveyor Belt Splicing Rubber

● Tie Gum
● Cover Rubber
● Belt Noodle Gum

Detailed specifications

01 (17)

图片2 (6)

Belt Width（mm）	A（mm）	B（mm）	C（mm）	D（pcs）	Scraper Weight（KG）			Total Weight（KG）
Belt Width（mm）	A（mm）	B（mm）	C（mm）	D（pcs）	178mm	260mm	301mm	178mm	260mm	301mm
650	600	650	700	1	6.5	13	15.3	37	55	60
800	762	800	700	1	8	16	18.9	41	61	67
1000	914	1000	700	1	10	20	23.6	45	68	73
1200	1067	1200	700	2	12	28	23.6	55	75	80
1400	1321	1400	700	2	14	32	33	59	86	91
1600	1524	1600	700	2	16	36	37.8	63	93	98
1800	1676	1800	700	2	18	40	42.5	68	101	105
2000	1828	2000	700	2	20	44	47.2	83	107	112
2200	1912	2200	900	2	22	48	51.9	88	113	118
2400	1997	2400	900	2	24	52	56.6	93	120	127

Product Details

格式工厂IMG_20201104_181559

格式工厂IMG_20201208_145336

格式工厂清扫器 (3)

格式工厂现场实况 (3)

格式工厂现场实况 (5)

格式工厂现场实况 (6)

格式工厂Application looks

格式工厂Belt cleaner 2

Product Parameters

Material	Polyurethane	Underground Applications	YES
Model	ZJCLEAN-PU/R	Product Inspection	Available
Colour	Customised production	Lead Time	Ready to ship in stock
Belt Width	650mm-2400mm	MOQ	1 Set
Tensile Strength	53	Warranty	6 Months
Belt Speed	Up to 1600 fpm (8m/s)	Supply Capacity	450 units / month
Hardness	85 Shore A	Certification	ISO9001;ISO14001;ISO45001;CE;UPEM
Feature	Wear-Resistant,Adjustment,Design	Packing	Pallet, wooden case
Temperature	Between -35 degrees F and 185 degrees F	Delivery Time	1～5units，1-3days/10～20units，3-5days
Corrosive Conditions	YES

Product Specifications

More customised sizes on request

Order No.	Product Name	Belt Width(mm)	Blade Width(mm)	Total Length(mm)
ZJCLEAN-PU/R-650	Constant Pressure Cleaner	B650	650	1650
ZJCLEAN-PU/R-800	Constant Pressure Cleaner	B800	800	1800
ZJCLEAN-PU/R-1000	Constant Pressure Cleaner	B1000	1000	2000
ZJCLEAN-PU/R-1200	Constant Pressure Cleaner	B1200	1200	2200
ZJCLEAN-PU/R-1400	Constant Pressure Cleaner	B1400	1400	2400
ZJCLEAN-PU/R-1600	Constant Pressure Cleaner	B1600	1600	2600
ZJCLEAN-PU/R-1800	Constant Pressure Cleaner	B1800	1800	2700
ZJCLEAN-PU/R-2000	Constant Pressure Cleaner	B2000	2000	2900
ZJCLEAN-PU/R-2200	Constant Pressure Cleaner	B2200	2200	3100
ZJCLEAN-PU/R-2400	Constant Pressure Cleaner	B2400	2400	3300
