PU Primary Belt Cleaner-General Purpose 1

PU Primary Belt Cleaner-General Purpose 2

PU Primary Belt Cleaner-General Purpose 3

PU Primary Belt Cleaner-General Purpose 4

PU Primary Belt Cleaner-General Purpose 5

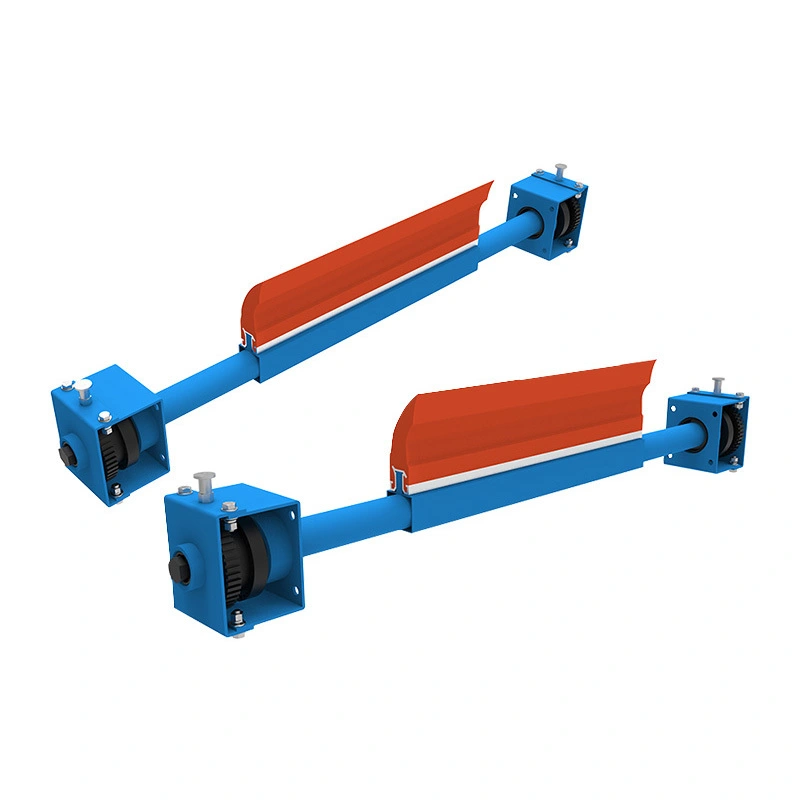

PU Primary Belt Cleaner-General Purpose

The primary cleaner blade is made of polyurethane material and has the characteristics of abrasion resistance, corrosion resistance, hydrolysis resistance, on damage to the belt, no stickiness to the material and long service life.

One thing that everyone understands is that the primary cleaner is the most important part of the conveyor belt cleaning system, it is located under the head drum and is the first step in cleaning the whole system, 90% of the residual material can be cleaned through it during transport.

It is therefore necessary to ensure the strength of the frame and drawcord, as well as the wear resistance of the blades, which will affect the overall effectiveness of the product.

This gear polyurethane cleaner - general purpose, can be used in most conveyors, high temperature resistance, wear resistance, installation portability and hardness is the choice of most customers.

Inquiry

Write a Review

Difficulty

● High-speed conveyor line

● Difficult to clean up muddy bulk

● High temperature conveyor line

● Scraper replacement hassle

● Blade wears too fast

● Frequent adjustment of locking is time-consuming and labor-intensive

Advantage

● This part touch conveyor belt to cleaner the material on it

● Wear abrasive Polyurethane materail

● Color can be customized

● Temperature from -20 to 120°C available

● Blade is detachable

● Used in power plant, mining, port, cement plant

Application Sectors

● Mining

● Cement plant

● Steel plant

● Coking plant

● Electric power plant

Primary Belt Cleaner Blade Part

● This part touch conveyor belt to cleaner the material on it.

● Wear abrasive Polyurethane materail

● Color can be customized

● Temperature from -20 to 120°C available

● Blade is detachable

● Used in power plant, mining, port, cement plant

Blade Size	178mm	260mm	301mm
Belt Speed	≤3.5m/s	≤6m/s	≤7.8m/s

Tensioner Part

Different tensioner types to meet various conveyor type and cleaning requirements. The first Spring Tensioner, standard equipped for our primary polyrethane belt cleaner.

Strong enough to give cleaner a suitable power to closely touch to the belt surface.The second is Automatic Gear Tensioner,suitable for many heavy duty conveyor line.

Self adjustable advantage can save labour to modify it when blade wear much until used up.

Installment:

图片2 (7)

图片3 (5)

图片4 (2)

Quality Certifications

Conveyor Belt Splicing Rubber

● Tie Gum
● Cover Rubber
● Belt Noodle Gum

Detailed specifications

图片3 (4)

Belt Width（mm）	A（mm）	B（mm）	C（mm）	D（pcs）	Scraper Weight（KG）			Total Weight（KG）
Belt Width（mm）	A（mm）	B（mm）	C（mm）	D（pcs）	178mm	260mm	301mm	178mm	260mm	301mm
650	600	650	700	1	6.5	13	15.3	37	55	60
800	762	800	700	1	8	16	18.9	41	61	67
1000	914	1000	700	1	10	20	23.6	45	68	73
1200	1067	1200	700	2	12	28	23.6	55	75	80
1400	1321	1400	700	2	14	32	33	59	86	91
1600	1524	1600	700	2	16	36	37.8	63	93	98
1800	1676	1800	700	2	18	40	42.5	68	101	105
2000	1828	2000	700	2	20	44	47.2	83	107	112
2200	1912	2000	900	2	22	48	51.9	88	113	118
2400	1997	2000	900	2	24	52	56.6	93	119	125

Datasheet Polyurethane Material

图片3 (4)

Specification	Polyurethane Type	The largest belt speed fpm(m/s)	4.6/6/7.8
Application temperature	Continuous:-30--70°C Transient：-40--85°C/-40--120°C	Roller diameter in.(mm)	300-600/500-1000/800-1500
Hardness(Shore A)	85±2	Tensile strength	53
Elongation break	614	Tear strength	108
Deformation rate in 23h	30	Abrasion(mm3/1.61KM)	0.012
Springback(%)	20

Product Details

IMG_20201208_144253

IMG_20201208_150154

微信图片_20200911094450 (2)

格式工厂001

IMG_20201208_143952

4 (2) (2)

01 (18)

02 (16)

Product Parameters

Material	Polyurethane	Underground Applications	YES
Model	ZJCLEAN-GU/R	Product Inspection	Available
Colour	Customised production	Lead Time	Ready to ship in stock
Belt Width	650mm-2400mm	MOQ	1 Set
Tensile Strength	53	Warranty	6 Months
Belt Speed	Up to 1600 fpm (8m/s)	Supply Capacity	450 units / month
Hardness	85 Shore A	Certification	ISO9001;ISO14001;ISO45001;CE;UPEM
Feature	Wear-Resistant,Adjustment,Design	Packing	Pallet, wooden case
Temperature	Between -35 degrees F and 185 degrees F	Delivery Time	1～5units，1-3days/10～20units，3-5days
Corrosive Conditions	YES

Product Specifications

More customised sizes on request

Order No.	Product Name	Belt Width(mm)
ZJCLEAN-GU/R-650	PU Primary Belt Cleaner	650
ZJCLEAN-GU/R-800	PU Primary Belt Cleaner	800
ZJCLEAN-GU/R-1000	PU Primary Belt Cleaner	1000
ZJCLEAN-GU/R-1200	PU Primary Belt Cleaner	1200
ZJCLEAN-GU/R-1400	PU Primary Belt Cleaner	1400
ZJCLEAN-GU/R-1600	PU Primary Belt Cleaner	1600
ZJCLEAN-GU/R-1800	PU Primary Belt Cleaner	1800
ZJCLEAN-GU/R-2000	PU Primary Belt Cleaner	2000
ZJCLEAN-GU/R-2200	PU Primary Belt Cleaner	2200
ZJCLEAN-GU/R-2400	PU Primary Belt Cleaner	2400

FAQs

How long will your rubber sheets last?

Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.

How can I get some samples?

We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.

Can I visit your factory?

Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
