BAI-OTT Conveyor Belt Accessories Suppliers - 26 years of r&d of new splicing materials and rubber maintenance materials.
BAI-OTT Ceramic Cleaner is a new and efficient product in the field of belt cleaning, with a more portable construction (weighing only 9.5kg), it is a high performance alternative to traditional tungsten carbide blades and polyurethane cleaners.
The ZJCLEAN-CA cleaner is composed of high quality wear-resistant ceramics, where hardness and abrasion resistance are indicators of the product's ability to be tested. The ceramic, composed of aluminium oxide (92%), reaches 9 on the Mohs scale of hardness.
The ZJCLEAN-CA has a simple design and is easy to install and maintain. It is suitable for iron ore, limestone, coal, quarry, clay, fertiliser and dusty high temperature materials.
Advantage
● Mounts at the head drum, achieving a cleaning performance efficiency level of up to 90% removal of all carryback within the material flow.
● Reduces conveyor mistracking and structural damage potential.
● Improves productivity levels.
● The surface of the ceramic cleaner is smooth and wears little to the belt, which greatly improves the life of the main auxiliary equipment of the belt conveyor, such as belts, drums and idlers, reduces the labor workload of the post personnel, reduces the production cost and improves the production efficiency.
● The ceramic belt cleaner is installed obliquely on the roller part, and will be closely attached to the belt conveyor to form point contact, which is particularly effective for conveying wet and sticky materials, which is incomparable to the scraper cleaner.
● The ceramic belt cleaner can be installed on belt conveyors in various working environments. It only takes about half an hour to install, and it is easy to maintain.
Conveyor belt cleaning solutions for most situations
● High-speed conveyor line
● Difficult to clean up muddy bulk
● High temperature conveyor line
● Scraper replacement hassle
● Blade wears too fast
● Frequent adjustment of locking is time-consuming and labor-intensive
Porduct features
● Can be adapted to various high-speed working conditions.
● It can adapt to the high temperature working conditions of steel industries and cement industries.
● Using highly wear-resistant ceramics, the service life of the Belt Scraper Blade and Belt cleaner is longer than that of other materials.
● Lower conveyor belt wear.
● Belt cleaner installation and daily maintenance are simpler.

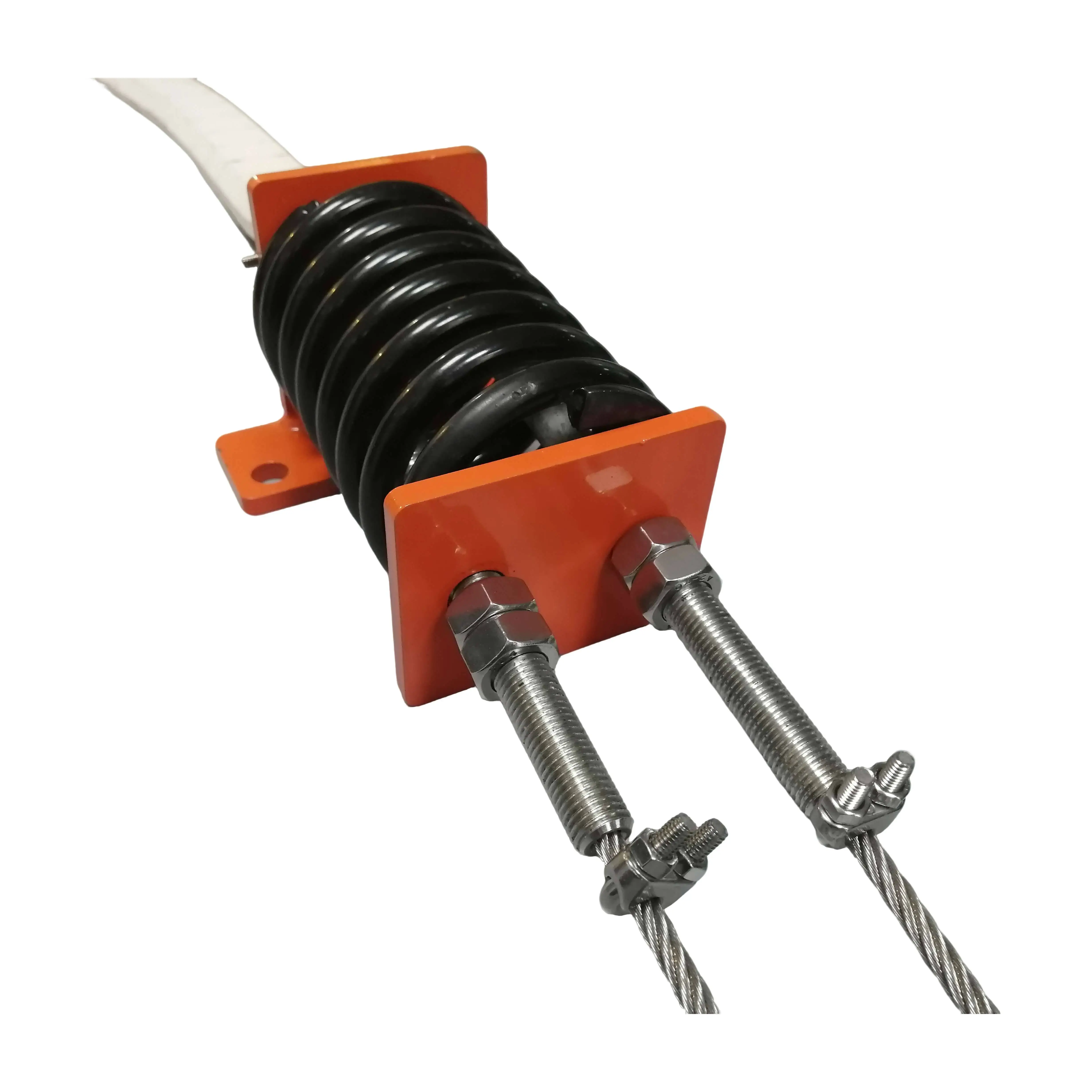

Spring tensioner
Bai-Ott ZJCLEAN-CA ceramic cleaner adopts spring tensioner at both ends, which can be more firmly affixed to the pulley surface, and the pressure is even without damaging the conveyor belt.
Both ends are mounted with up and down tensioners, which can reduce the wear and tear on the ceramic block and also slide smoothly over the mechanical splicing part.
Quality Certifications
Product Details
Product Parameters
Material | Alloy, Ceramic | Thermal Conductivity | 16.8W/m.k |
Model | ZJCLEAN-CA | Corrosive Conditions | YES |
Colour | White | Underground Applications | YES |
Belt Width | 650mm-2400mm | Product Inspection | Available |
Belt Speed | Up to 1600 fpm (8m/s) | Lead Time | Ready to ship in stock |
AI2o3 | ≥92% | MOQ | 1 Set |
Mohs Hardness | 9 mohs | Warranty | 6 Months |
Water Absorption | ≤0.02% | Supply Capacity | 450 units / month |
Fracture Toughness | 3.65mpa | Certification | ISO9001;ISO14001;ISO45001;CE;UPEM |
Bending Strength | 255mpa | Packing | Pallet, wooden case |
Density | ≥3.6g/cm³ | Delivery Time | 1~5units,1-3days/10~20units,3-5days |
Compressive Strength | ≥850mpa |
Product Specifications
More customised sizes on request
Order No. |
Belt Width(mm) |
Weight(kg) |
Ceramic Blocks(pcs) |
Steel Length(m) |
ZJCLEAN-CA-650 |
650 |
9 |
20 |
2.8 |
ZJCLEAN-CA-800 |
800 |
9.5 |
25 |
3 |
ZJCLEAN-CA-1000 |
1000 |
10 |
30 |
3.2 |
ZJCLEAN-CA-1200 |
1200 |
10.5 |
35 |
3.4 |
ZJCLEAN-CA-1400 |
1400 |
11 |
41 |
3.6 |
ZJCLEAN-CA-1600 |
1600 |
11.5 |
46 |
3.8 |
ZJCLEAN-CA-1800 |
1800 |
12 |
50 |
4 |
ZJCLEAN-CA-2000 |
2000 |
12.5 |
55 |
4.2 |
ZJCLEAN-CA-2200 |
2200 |
13 |
61 |
4.4 |
ZJCLEAN-CA-2400 |
2400 |
13.5 |
67 |
4.6 |
