Secondary Water Proof Belt Cleaner

The secondary water proof belt cleaner solves the problem of deposits and stickies on conveyor belts. Flat top and 85 Shore A PU material can softly touch the belt bottom so that can clean the rest tiny material well. The adjustable tensioner part can make it very easy to be modified as the conveyor frame.

BAI-OTT is a professional manufacturer of conveyor belt cleaner and scraper in China. The cleaners we design and manufacture are Light duty PU primary belt Cleaner, Heavy duty primary PU belt scraper, Constant pressure primary belt sweeper, Alloy primary belt cleaner (H type), Ceramic belt cleaner, Medium-sized primary conveyor sweeper, secondary scraper sweeper, second alloy sweeper,second constant pressure sweeper, universal alloy sweeper, Tail V-plow conveyor sweeper, central I-type conveyor cleaner, electric roller brush cleaner and sweeper blade.

Inquiry

Write a Review

Difficulty

● High-speed conveyor line

● Difficult to clean up muddy bulk

● High temperature conveyor line

● Scraper replacement hassle

● Blade wears too fast

● Frequent adjustment of locking is time-consuming and labor-intensive

Advantage

● The unique tensioning device and high-performance spring can make the blade stick closely to the leather when the belt is constantly shaking.

● It can maintain a stable tension, reduce the fatigue damage to the blade base caused by jitter, and improve the service life of the blade.

● There is no need to disassemble the cleaner, just adjust the screw on the tensioner to adjust the tension of the knife edge. The cleaning effect is obvious, durable, and well-received by users.

● Solve the cleaning problem of sediment and sticky material on conveyor belt.

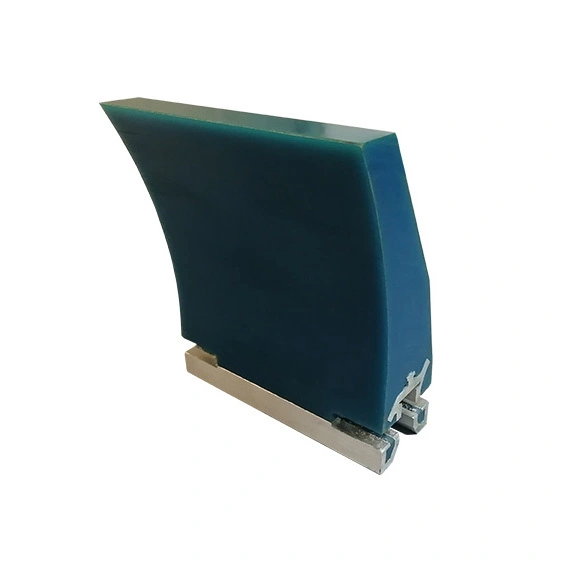

Blade Part

This part touch conveyor belt bottom surface to clean the material on it.

● Wear abrasive Polyurethane materail

● Color can be customized

● Temperature from -20 to 120°C available

● Blade is detachable

● Used in power plant, mining, port, cement plant

Tensioner Part

Different tensioner types to meet various conveyor type and cleaning requirements.

The first tensioner is (L)*23(W)*25(H)cm which is small and porable to stall in many narrow and short distance between belt and conveyor frame.

2 bolts to install it on conveyor and 3 bolts fix it on cleaner tube.Esay operation 4kg for each.

Installation Drawing

The second tensioner is 18(L)*7(W)*45(H)cm which is taller to matched the higher distance between conveyor frame and bottom belt.

Larger adjustable range is convenient to operate.2 bolts to install it on conveyor and 3 bolts fix it on cleaner tube.

Quality Certifications

Conveyor Belt Splicing Rubber

● Tie Gum
● Cover Rubber
● Belt Noodle Gum

Orange Type

Belt Width(mm)	A(mm)	B(mm)	C(pcs)	Scraper Weight(KG)	Total Weight(KG)
800	800	1650	2	5	24.4
1000	1000	1850	2	6.3	27.1
1200	1200	2050	2	7.6	30.4
1400	1400	2250	2	8.9	33.7
1600	1600	2450	2	10.2	37
1800	1800	2650	2	11.5	40.3
2000	2000	2850	2	12.8	43.6
2200	2200	3050	2	14.1	47
2400	2400	3250	2	15.4	50.3

Blue Type

Belt Width(mm)	A(mm)	B(mm)	C(pcs)	Scraper Weight(KG)	Total Weight(KG)
800	800	1650	2	7.3	31.3
1000	1000	1850	2	8.6	34
1200	1200	2050	2	10.3	37
1400	1400	2250	2	12	40
1600	1600	2450	2	13.8	43
1800	1800	2650	2	15.5	46.2
2000	2000	2850	2	17.2	49.5
2200	2200	3050	2	18.9	53
2400	2400	3250	2	20.6	56.6

Product Details

格式工厂IMG_20190713_143040

格式工厂IMG_20190713_143116

格式工厂IMG_20190724_082236

格式工厂IMG_20190809_143258

Product Parameters

Material	PU	Product Inspection	Available
Model	ZJCLEAN-CH	Lead Time	Ready to ship in stock
Colour	Customised production	MOQ	1 Set
Belt Width	650mm-2400mm	Warranty	6 Months
Belt Speed	Up to 1600 fpm (8m/s)	Supply Capacity	450 units / month
Hardness	85 Shore A	Certification	ISO9001;ISO14001;ISO45001;CE;UPEM
Feature	Wear-Resistant,Adjustment,Design	Packing	Pallet, wooden case
Temperature	Between -20 to 120°C available	Delivery Time	1～5units，1-3days/10～20units，3-5days
Underground Applications	YES

Product Specifications

More customised sizes on request

Order No.	Product Name	Belt Width(mm)	Blade Width(mm)	Extension Bar(mm)
ZJCLEAN-CH-650	Secondary Water Proof Belt Cleaner	650	650	650
ZJCLEAN-CH-800	Secondary Water Proof Belt Cleaner	800	800	650
ZJCLEAN-CH-1000	Secondary Water Proof Belt Cleaner	1000	1000	650
ZJCLEAN-CH-1200	Secondary Water Proof Belt Cleaner	1200	1200	850
ZJCLEAN-CH-1400	Secondary Water Proof Belt Cleaner	1400	1400	850
ZJCLEAN-CH-1600	Secondary Water Proof Belt Cleaner	1600	1600	850
ZJCLEAN-CH-1800	Secondary Water Proof Belt Cleaner	1800	1800	850
ZJCLEAN-CH-2000	Secondary Water Proof Belt Cleaner	2000	2000	850
ZJCLEAN-CH-2200	Secondary Water Proof Belt Cleaner	2200	2200	1050
ZJCLEAN-CH-2400	Secondary Water Proof Belt Cleaner	2400	2400	1050

FAQs

How long will your rubber sheets last?

Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.

How can I get some samples?

We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.

Can I visit your factory?

Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
