High Elastic UHMWPE Conveyor Impact Bar

BAI-OTT provides ZJ-IB impact bar for coal mine conveyor equipment, the steel fixing frame has excellent corrosion resistance in the high sulphur environment of coal mine.

Impact bed is used in the loading area of conveyor belt to replace the traditional cushion rollers. It is designed to absord impact which will dramatically decrease impact from the falling materials to reduce the damage to the structure.

Inquiry

Write a Review

Product Introduction

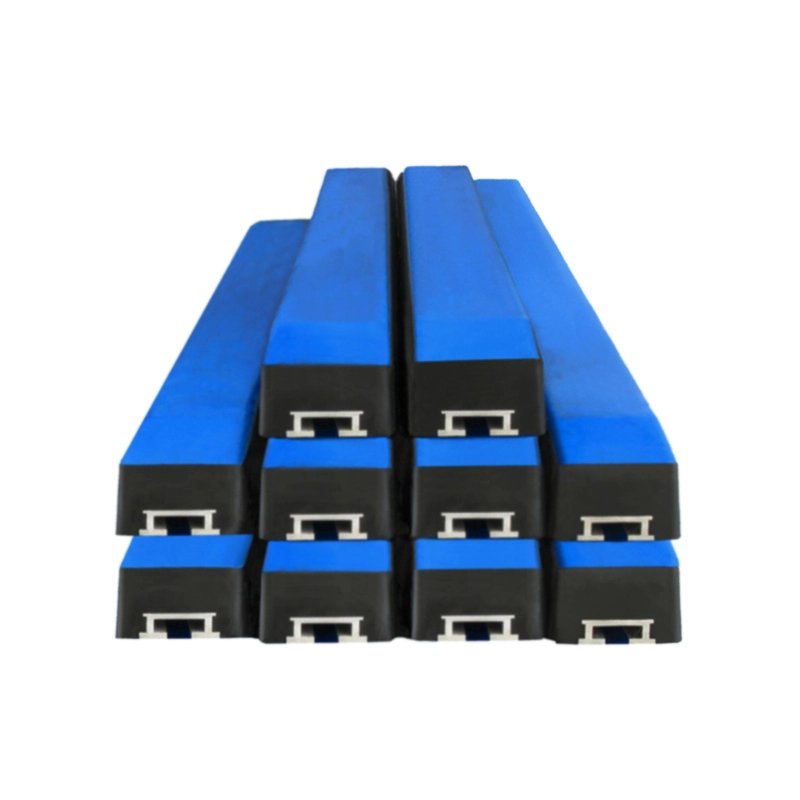

The main use of compact bed / bar is to give a buffer to the products from the conveyor belt to avoid a damage of the goods.In addition,impact bed is installed under the conveyor belt loading points, thus, impact bars consist of three different parts, wear resistant and low friction UHMW-PE sheet,high-elasticity rubber, aluminium T-bolt fastening system.

Apart from this combination, all -PU type also popular under easy wear working situation.Bai-Ott producing impact bed/bar in different color,which means that the customer can decide any color they want! lmpact bed/bar of our company has a good quality and we could meet all kinds of needs of our clients!

Shape of impact bar

Note: The single slope is directional and runs in the opposite direction to the conveyor belt, while a double slope is not directional.

Specifications

● PE mainly height in 12.5mm, high wear resistance, low friction coefficient and high impact toughness.

● The highly elastic rubber buffer layer absorbs the impact energy of falling materials on the conveyor belt.

● The high-strength metal frame can withstand large load impact without deformation.

● Steel bolts increase overall fastening.

● The”T-track” device makes the buffer strip have different fastening points in the whole length to ensure the connection is firm and reliable and easy to disassemble.

● The various parts are connected by hot vulcanizing technique.

图片3 (6)

图片4 (3)

Advantage

● Conveyor impact buffer bar can effectively prevent the occurrence of uneven force on the conveyor belt and reduce the impact damage of the material;

● The surface material is smooth and wear-resistant UHMW-PE, which can reduce frictional resistance and prolong life;

● The middle layer of high elastic rubber of the impact bar can effectively absorb the impact of the material on the conveyor belt;

● The bottom layer uses special high-strength steel parts, which is light and does not rust, easy to install, and the impact bar can be replaced by a single piece;

● Conveyor impact buffer bar can be disassembled and assembled according to different carrying capacity, bandwidth and slot angle to improve production efficiency.

Quality Certifications

Conveyor Belt Splicing Rubber

● Tie Gum
● Cover Rubber
● Belt Noodle Gum

Detailed Parameter

Item	Parameter		Standard Type	High Elastic Type	Downhole Type
UHMWPE Part	Color		Blue	Blue	Blue
	Tensile Breaking strength	Mpa	23	23	20
	Elongation at break	%	300	300	250
	Hardness	Shore A	60-70	60-70	65-75
	Abrasion	cm³	0.053	0.053	0.08
	Density	g/cm³	0.93-0.94	0.93-0.94	1.13
High Elastic Rubber Part	Hardness	Shore A	60-65	45-50	60-65
	Strength of Extension	Mpa	19	19	19
	Elongation an break	%	400	400	400
Metal Part	Type		Aluminium Alloy
Bond Strength	Bonding of PE&rubber	N/mm	≥10	≥10	≥10
Bond Strength	Bonding of metal&rubber	N/mm	≥10	≥10	≥10

Recommended number of impact bars
Belt Width(mm)	550	650	800	1000	1200	1400	1600	1800	2000	2200	2400
Number of bars	4	6	7	10	10	13	15	16	18	19	21
Further dimensions on demand.

Product Details

应用场景_画板 1 (2)

Product Parameters

Material	PE+Rubber+Steel Bolt	Underground Applications	YES
Model	ZJ-IB	Product Inspection	Available
Colour	Customised production	Lead Time	Ready to ship in stock
Belt Width	550mm-2400mm	MOQ	10 pcs
Belt Speed	Up to 1800 fpm (9m/s)	Warranty	6 Months
Hardness	60-70 Shore A	Supply Capacity	4500 pcs/month
Sample	Available	Certification	ISO9001;ISO14001;ISO45001;CE;UPEM
Application	Coal mines, Cement plants, Steel plants, Power plants and other factories	Packing	Pallet, wooden case
Fracture	High elastic+Adjustable+High Wear-Resistant+High Quality	Delivery Time	10～30pcs，1-3days/50～100pcs，3-5days
Corrosive Conditions	YES

Product Specifications

More customised sizes on request

Order No.	Belt Width(mm)	Weight(kg)	Ceramic Blocks(pcs)	Steel Length(m)
ZJCLEAN-CA-650	650	9	20	2.8
ZJCLEAN-CA-800	800	9.5	25	3
ZJCLEAN-CA-1000	1000	10	30	3.2
ZJCLEAN-CA-1200	1200	10.5	35	3.4
ZJCLEAN-CA-1400	1400	11	41	3.6
ZJCLEAN-CA-1600	1600	11.5	46	3.8
ZJCLEAN-CA-1800	1800	12	50	4
ZJCLEAN-CA-2000	2000	12.5	55	4.2
ZJCLEAN-CA-2200	2200	13	61	4.4
ZJCLEAN-CA-2400	2400	13.5	67	4.6
