BAI-OTT Conveyor Belt Accessories Suppliers - 26 years of r&d of new splicing materials and rubber maintenance materials.

Y Type High Wear Resistance Polyurethane Conveyor Belt Skirting Board Sheet 1
Y Type High Wear Resistance Polyurethane Conveyor Belt Skirting Board Sheet 2
Y Type High Wear Resistance Polyurethane Conveyor Belt Skirting Board Sheet 1
Y Type High Wear Resistance Polyurethane Conveyor Belt Skirting Board Sheet 2

Y Type High Wear Resistance Polyurethane Conveyor Belt Skirting Board Sheet

Y Type High Wear Resistance Polyurethane Conveyor Belt Skirting Board Sheet is a kind of automatic conditioning conveyor belt skirt system with anti-overflow and anti-falling. The system is composed of main seal and auxiliary seal. It is soft and wear-resistant, and tightly fits with the belt through the elasticity of the cover itself. Multi-layer protection of main and auxiliary seals collects dust to prevent overflow.
The rubber skirt board is made of high wear-resistant pure rubber, with better wear-resistance, longer service life and no damage to the belt.

    oops...!

    no product data.

    Go to homepage

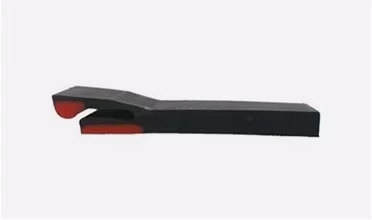

    Y type Conveyor belt skriting rubber

    Conveyor belt Skirting rubber sheets are typically made from a composite of polyurethane and natural rubber, offering excellent wear resistance and elasticity. They feature a dual-layer, sealed design:  Y/I/T Dual or straight type  plate and skirt. The plate adheres closely to the side of the chute to prevent the escape of large particles, while the skirt features a single-sided arc transition to prevent damage to the belt or itself, even if the belt deviates.


    3382cb31-9d4f-4b8c-b1ee-df8e7bea8fa5
    cc7571ab-5add-4294-8d13-033598744b40

    Feature Of Skriting Rubber

    Y-type double layer design

    Y-type skirting board can increase leakproofness by 100% compared to single layer.

    Protect conveyor belt

    Arc contact area between PU and belt can protect from damaging.

    Impact resistance

    After analyzed conveyor material track we changed rubber formula to improve the impact resistance.

    size of Skriting Rubber
    thickness Height Length Type
    10/15/20mm 170mm Customized Y
    10/15/20mm 190mm Customized Y
    10/15/20mm 200mm Customized Y
    10/15/20mm 220mm Customized Y
    10/15/20mm 250mm Customized Y
    10/15/20mm 280mm Customized Y
    10/15/20mm 320mm Customized Y

    Technical Data

    Skriting  Rubber sheet

    Skriting Rubber  Sheet

    Hardness

    40~60Shore A

    Density

    1.11~1.35 g/cm³

    Elongation

    350~500%

    Tensile strength

    10~25Mpa

    Wear lose

    80-180mm³ at 80N

    Temperature

    under 90°c

    Related Product  Images

    应用场景_画板 1
    0bf108e6-3a54-4f3e-845b-6d0b1ba85cf1
    0bf108e6-3a54-4f3e-845b-6d0b1ba85cf1
    a49acef9-99ed-4d79-99d4-327e4c70a4d0

    FAQs

    1
    How long will your rubber sheets last?
    Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.
    2
    How can I get some samples?
    We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.
    3
    Can I visit your factory?
    Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
