BAI-OTT Conveyor Belt Accessories Suppliers - 26 years of r&d of new splicing materials and rubber maintenance materials.

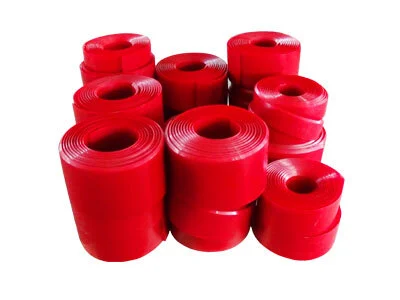

Polyurethane Highly Abrasion Resistant Rubber Skirt Board Rubber Sheet 1
Polyurethane Highly Abrasion Resistant Rubber Skirt Board Rubber Sheet 2
Polyurethane Highly Abrasion Resistant Rubber Skirt Board Rubber Sheet 1
Polyurethane Highly Abrasion Resistant Rubber Skirt Board Rubber Sheet 2

Polyurethane Highly Abrasion Resistant Rubber Skirt Board Rubber Sheet

    oops...!

    no product data.

    Go to homepage

    Product Intruction

    The flat anti-overflow skirtting rubber is a key sealing component in the belt conveyor chute system. It is mainly used to solve the gap sealing problem between the conveyor belt and the chute to prevent material spillage, air leakage and dust flying. Its double-layer structure design is fixed to the bottom edge of the chute through a quick clamping device, which can effectively reduce the dust concentration in the belt corridor and improve the safety and environmental protection of the working environment.


    2e4c30e4-4297-4b44-a154-39cd119a7085

    Related Parameters

    Rubber Part:                                                       Polyurethane:
    Density(g/cm3)         1.3



    Density(g/cm3)

    1.2

    Tensile Strength(Mpa)

    17-21

    Hardness(Shore A)

    90+- 5

    Hardness(Shore A)

    65+-5

    Abrasion resistance(mm3)

    85

    Elongation Rate At Break(%)

    350-500%

    Place Of Origin

    China

    Breaking Strength(N/mm)

    16

    Working temperature(℃)

    <80

    Abrasion resistance(mm3)

    190

    Packing

    PET bag+ wooden case

    Working temperature(℃)

    -30-120

    Age of Use

    at least 24months

    7b7484f7bd7baa85707e695c37addd8f

    Product size

    1. Length: 1m, 7m, 10m, 20m, 30m long polyurethane skirting are all available.
    2. Thickness: 6mm, 10mm, 12mm, 15mm, 20mm, etc.
    3. Width: 100mm, 120mm, 150mm, 200mm, 300mm, etc.
    4. Hardness: 60, 70, 80, 90 Shore A, etc.
    5. Color: red, orange, black, green, etc.
    We can customized for it according to your request.

    Product  Installation

    Polyurethane Highly Abrasion Resistant Rubber Skirt Board Rubber Sheet 5
    By angle aluminum and clamp
    Manually rotate the clamping handle to achieve quick fixation. Except for the first installation, the base needs to be welded, and subsequent replacement does not require tools and is easy to disassemble.
    Polyurethane Highly Abrasion Resistant Rubber Skirt Board Rubber Sheet 6
    Rotate the clamping handle
    Manually rotate the clamping handle to achieve quick fixation. Except for the first installation, the base needs to be welded, and subsequent replacement does not require tools and is easy to disassemble.

    Application

    This product is widely used in belt conveyor scenarios in coal mines, thermal power plants, mining and other industries, and is especially suitable for complex working conditions such as high dust and humidity.

    Polyurethane Highly Abrasion Resistant Rubber Skirt Board Rubber Sheet 7
