Cylindrical Ceramic Liner
The ceramic-rubber liner provides very strong impact and abrasion resistance, and the ceramic sheet on the surface is thermally vulcanised to the rubber for superior adhesion.
The rubber and ceramic composite wear-resistant products is to use the hot vulcanization process to vulcanize the toughened ceramic sheet in a steel plate groove equipped with special rubber, and the steel plate groove is equipped with countersunk bolts.Ceramic lining is divided into two-in-one liner and three-in-one liner.

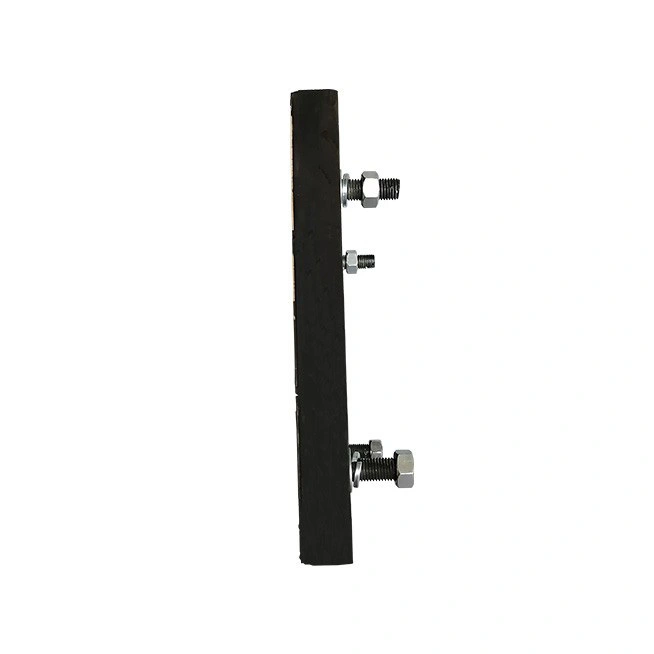

Two-in-one lining refers to the composite of ceramic and rubber.Three-in-one lining refers to the composite of ceramic, rubber and steel plate. And it comes with bolts for easy installation.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Structures of Ceramic Rubber Liner
● Alumina Ceramic: 92% & 95% Ceramic, available with extensive sizes and shapes
● Rubber/ PU Layer: Superior compound rubber/ polyurethane, impact-absorbing
● Connection: Steel plate & studs, CN bonding layer, ect
● Excellent bonding: Ceramic, rubber and steel plate are permanently bonded through our special molding and hot vulcanization process. Ceramics will stay in place until completely worn.
Feature Of Ceramic Liner
● High wear resistant rubber ceramic wear liner is embedding high alumina ceramic into energy absorbing rubber or polyurethane cushion, and bond both to steel backing plate via hot vulcanizing for easy installation.
● Impact absorbing rubber cushions helps reduce impact energy and prevent ceramic tiles breakage.
● CN bonding adhesive backed or Steel backing plate with studs for easy installation.
Advantage
● Hardness: the hardness of the material reflects the ability of the material to resist the material pressing into the surface. The higher the hardness, the shallower the depth of material intrusion, the smaller the volume of wear and the higher the wear resistance. The alumina content of wear-resistant ceramics exceeds 92% and the hardness reaches hra85 or above, which is the basis of wear resistance of wear-resistant ceramic tubes.
● Strength: high strength, which can provide good support for wear resistance and give full play to the ability of anti-wear and hard wear resistance, that is, strength and hardness complement each other. The bending strength of wear-resistant ceramics is 300-450 Mpa and the compressive strength is 1200-2500 Mpa, which further strengthens the wear resistance of wear-resistant ceramic pipes.
● Roughness: the smaller the roughness value, the higher the fatigue wear resistance. Under certain circumstances, the ceramic surface roughness is related to the thickness of powder particles. Wear resistant ceramics have been polished for many times, and are supported by high-quality fine powder. The smoothness is very high, which adds a third guarantee to the wear resistance of wear-resistant ceramic tubes.
The rubber and ceramic composite wear-resistant products is a customized product, it can be made in various shapes, selected composite material according liner wear of various thicknesses, forming a strong wear layer.
The unique toughening formula forms a strong crystal bond, which greatly enhances the impact resistance of alumina ceramics, which is 3 to 5 times that of general standard wear-resistant ceramics.
Different shapes and sizes
● Mosaic: 10x10x2~10mm, 17.5x17.5x2~15mm,20x20x2~15mm,33x33x7~25mm, etc.
● Square: 100x100x6~50mm, 150x100X6~50mm, etc.
● Hexagonal: S12xT3~20mm, S19xT6~25mm
● Spherical tiles: 40x40x40mm, 32x32x22mm, 38x38x38mm, etc.
● Cylinder/rod: 6x6mm, 15x15mm, 20x20mm, 31x31mm, 40x40mm, 50x50mm, etc.
Technical Data
Rubber Wear Resistant Ceramic Liner For Conveyor Hopper Bin Technical Data.
|
Ceramic Tile Specifications |
|
|
AL2O3(%) |
95±0.5 |
|
Bending Strength(Mpa) |
＞280 |
|
Fracture Toughness(MPam1/2) |
＞3.9 |
|
Rockwell Hardness(HRA) |
＞88 |
|
Wear Volume(cm³) |
＜0.3 |
|
Density(g/cm³) |
＞3.7 |
|
Items |
Data |
|
Tensile Strength(Mpa) |
≥14 |
|
Break Extension(%) |
≥350 |
|
Shore Hardness(degree) |
55-65 |
|
Break Permanent Deformation(%) |
≤24 |
|
Rubber and Ceramic Adhesion Force(Mpa) |
≥3.0 |
|
Temperature Resistance(°C) |
≤100 |
Product Details
应用场景_画板 1
Product Parameters
| Main Ingredient | Ceramic/Rubber/Steel Plate | Lead Time | Ready to ship in stock |
| Model | ZJCER-HD | MOQ | 20sqm |
| Colour | Black | Warranty | 24 Months |
| Compressive Strength | 1200-2500Mpa | Supply Capacity | 8000sqm / month |
| Liner Shape | Customised sizes and shapes to suit site chute or silo conditions. | Certification | ISO9001;ISO14001;ISO45001;CE;UPEM |
| Product Construction | Steel plate + rubber + ceramic; rubber + ceramic; steel plate + ceramic | Packing | Pallet, wooden case |
| Sample | Provide | Delivery Time | 50～100sqm，3-5days/200～500sqm，7-10days |
| Product Inspection | Available |
Product Specifications
|
Order No. |
Product Name |
Dimension(mm) |
Ceramic Size(mm) |
Rubber Thickness(mm) |
Plate Thickness(mm) |
|
ZJCER-HD |
Hexagonal Ceramic Liner |
250*250 |
6*6 |
10 |
5 |
|
ZJCER-HD |
Hexagonal Ceramic Liner |
400*400 |
20*20 |
12 |
8 |
|
ZJCER-HD |
Hexagonal Ceramic Liner |
500*500 |
40*40 |
15 |
10 |
FAQs
1
How long will your rubber sheets last?
Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.
2
How can I get some samples?
We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.
3
Can I visit your factory?
Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
