BAI-OTT Conveyor Belt Accessories Suppliers - 26 years of r&d of new splicing materials and rubber maintenance materials.

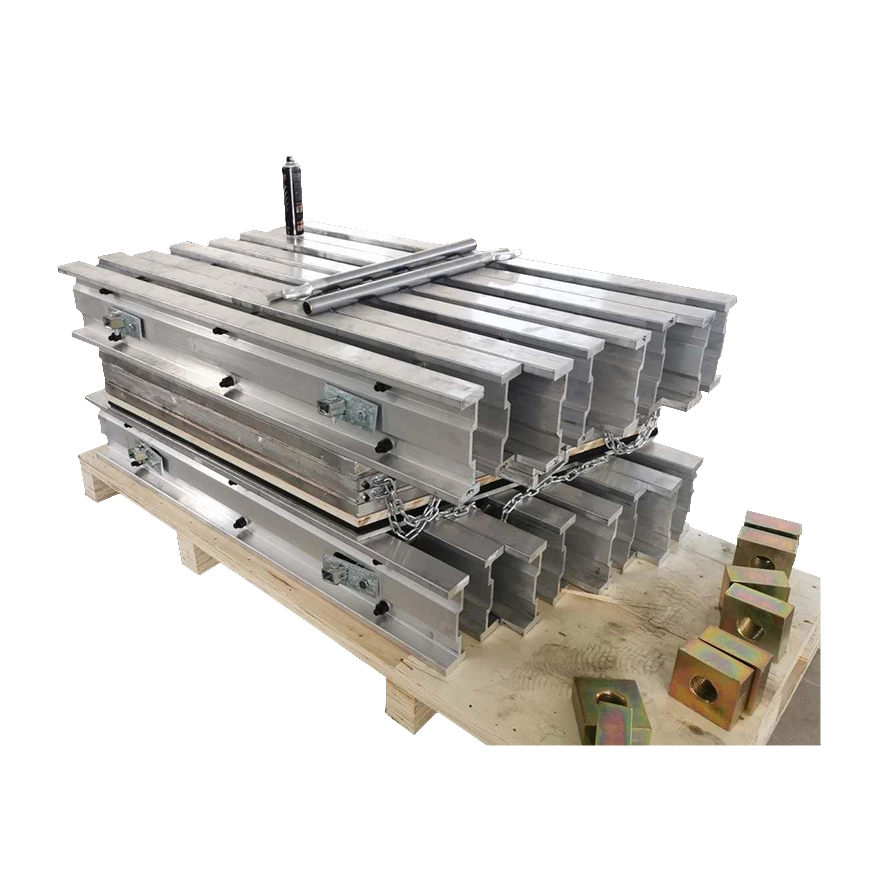

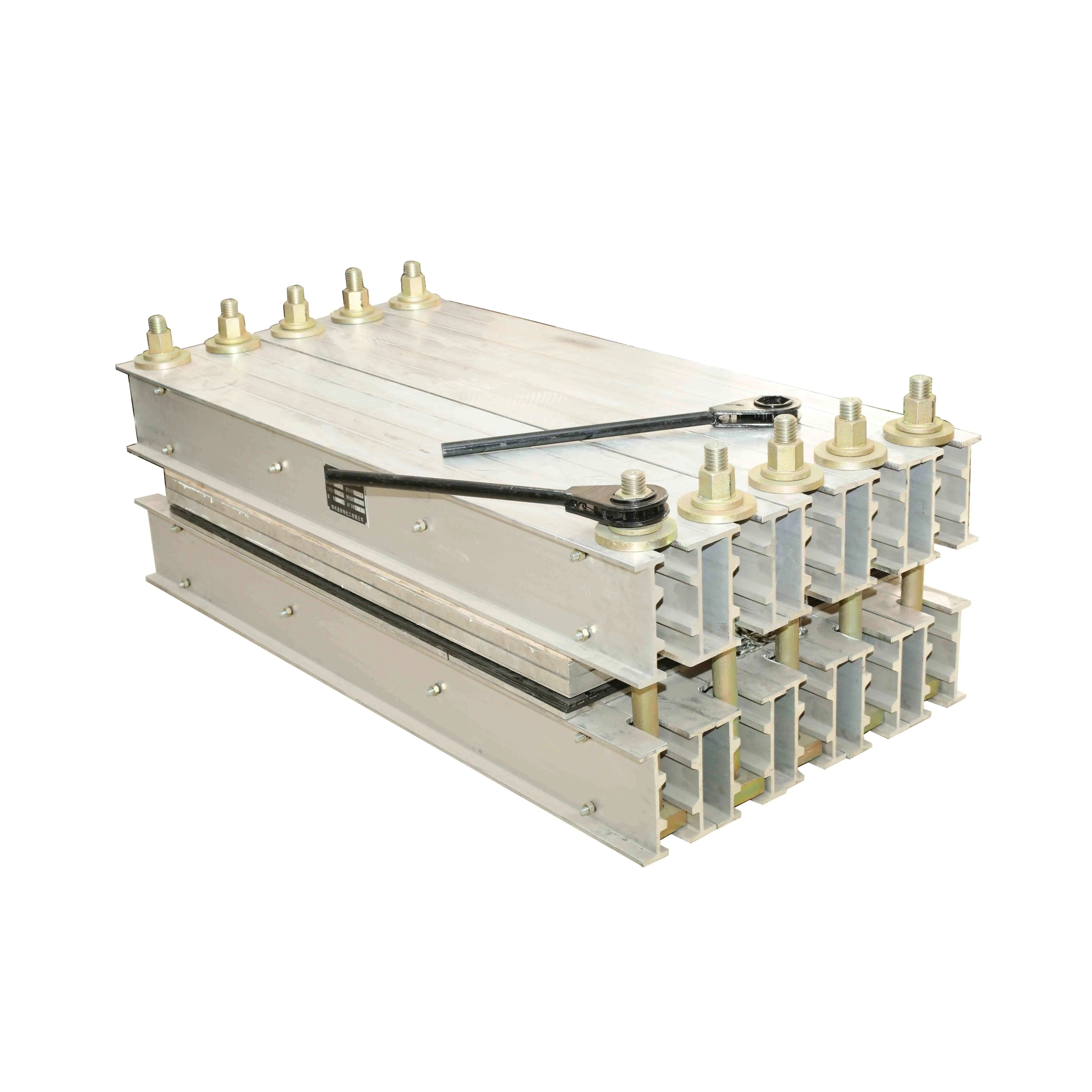

ZJ-ROM Vulcanizing press (water-cooled)
The heavy-duty vulcanizing machine is suitable for repairing wire rope conveyor belts.
Ultra-light vulcanizer and heavy-duty vulcanizer are available., There is not much difference between these two kinds of machines in appearance.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
PRODUCT PARAMETRS
● Pressure: 0-2MPa
● Temperature: 145°C
● Surface temp diff: ±3°C
● Heating time:≥30min
● After pressure the top and down heating Plates in 0.8 MPa, the gap between the Plate:≥12mm
● Voltage: normal 380V, others can be customized
● Temp adjusting range: 0-200°C
● Time adjusting range: 0-99min
Main Structures
● Frame
● Clamps
● Aluminum beam
● Bolts
● High-pressure soft pipe
● Electric air pressure pump
● Water pipe
● Control box
● Insulation plate
● Water pressure plate
● Bottom heating plate
● Top heating plate
Parameter information
● A=Length of platen along belt
● B=Width of platen across the belt on the bias
● C=Right angle dimension across the belt, plus edge overlap
● D=Bias angle beltwin.
Order Option
When order or inquiry, pls offer below informaiton:
|
Heating platen length |
(A=?) |
|
Belt max width |
(B=?) |
|
Working pressure |
100PSI/200PSI |
|
Working voltage |
380V/660V/480V/440V/415V/400V or 200V |
Quality Certifications
Conveyor Belt Splicing Rubber
● Tie Gum
● Cover Rubber
● Belt Noodle Gum
● Cover Rubber
● Belt Noodle Gum
Including Parts
|
ZJRAM Vulcanising Machine Matching List |
||
|
Name |
Unit |
Quantities |
|
Vulcanizing machine beam |
Pcs |
10pcs |
|
Vulcanizing machine bolts |
Pcs |
10pcs |
|
Vulcanizing machine heating plate |
Pieces |
2pieces |
|
Pressure plate of vulcanizing machine |
Pieces |
1Pieces |
|
Pressure pump |
Units |
1units |
|
High pressure hose |
Root |
1root |
|
Vulcanizing spanner |
Units |
2units |
|
Control box |
Units |
1units |
|
Primary conductor |
Root |
1root |
|
Second conductor |
Root |
2root |
|
Water pressure pack |
Units |
1Units |
More parameters
| Material | High strength aluminium alloy | Lead Time | Ready to ship in stock |
| Model | ZJ-ROM | MOQ | 1 Set |
| Product Inspection | Available | Warranty | 6 Months |
| Belt Width | 650mm-2400mm | Supply Capacity | 60 units / month |
| Power | 9.8-38KW | Certification | ISO9001;ISO14001;ISO45001;CE;UPEM |
| Pressure | 0.5-2.0MPa | Packing | Pallet, wooden case |
| Feature | Adjustable, Light and Portable | Delivery Time | 1～3units，3-5days/5～8units，7-10days |
Product Details
944b24dbc0a99d96d47eecf48105ceb
格式工厂215A8616
格式工厂picture5
格式工厂picture6
格式工厂IMG_20200623_083305
格式工厂IMG_20200623_083319
格式工厂picture1
格式工厂微信图片_2020121116415647
Product Specifications
|
Order No. |
Belt Width(mm) |
Size(mm) |
Heating Plate(mm) |
Power(kw) |
|
ZJ-ROM-650 |
650 |
650*830 |
830*820 |
9.8 |
|
650*1000 |
1000*820 |
11.8 |
||
|
ZJ-ROM-800 |
800 |
800*830 |
830*995 |
11.97 |
|
800*1000 |
1000*995 |
14.4 |
||
|
ZJ-ROM-1000 |
1000 |
1000*830 |
830*1228 |
14.7 |
|
1000*1000 |
1000*1228 |
17.8 |
||
|
ZJ-ROM-1200 |
1200 |
1200*830 |
830*1431 |
17.2 |
|
1200*1000 |
1000*1431 |
20.7 |
||
|
ZJ-ROM-1400 |
1400 |
1400*830 |
830*1653 |
19.8 |
|
1400*1000 |
1000*1653 |
23.8 |
||
|
ZJ-ROM-1600 |
1600 |
1600*830 |
830*1867 |
22.3 |
|
1600*1000 |
1000*1867 |
27 |
||
|
ZJ-ROM-1800 |
1800 |
1800*830 |
830*2079 |
24.9 |
|
1800*1000 |
1000*2079 |
30 |
||
|
ZJ-ROM-2000 |
2000 |
2000*830 |
830*2303 |
27.6 |
|
2000*1000 |
1000*2303 |
33.2 |
||
|
ZJ-ROM-2200 |
2200 |
2200*830 |
830*2478 |
29.7 |
|
2200*1000 |
1000*2478 |
35.8 |
||
|
ZJ-ROM-2200 |
2400 |
2400*830 |
830*2580 |
31.2 |
|
2400*1000 |
1000*2580 |
38.4 |
FAQs
1
How long will your rubber sheets last?
Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.
2
How can I get some samples?
We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.
3
Can I visit your factory?
Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
