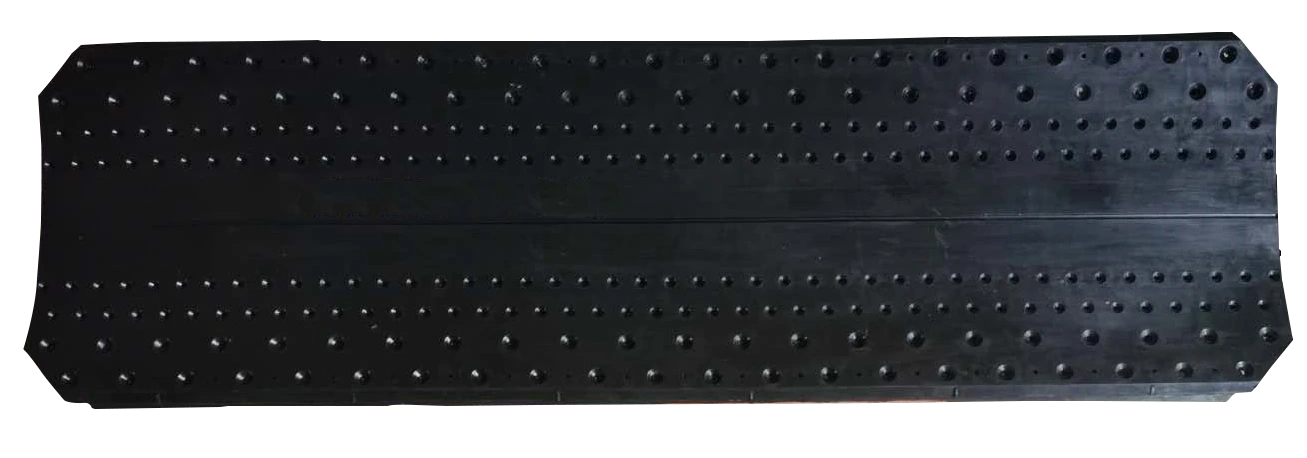

ZJ-M5 Rubber Conveyor Belt Fastener Joint with Super Screws 1

ZJ-M5 Rubber Conveyor Belt Fastener Joint with Super Screws 2

ZJ-M5 Rubber Conveyor Belt Fastener Joint with Super Screws

ZJ-M5 series is applicable to ultra-high strength conveyor belts. It applies a number of patented technologies, adopts high-strength material structure with nuts and washers embedded in the rubber, closely combines metal fasteners with joint sleeve. The small and large self-tapping screws are arranged in dislocation, which is more strong and more stable. It can be applied to the maximum belt strength of 2200N / mm.

Inquiry

Write a Review

Intruction Of ZJ-M5 Belt Jointings

This product has obvious advantages to the joint of high-temperature-resistant conveyer belts: High temp belts are usually made from EPDM, a kind of rubber that has poor adhesive performance and hard to make secondary vulcanization. Thus, there are more problems in the joint of high temp belts. The quick joint connector provides a new way of conveyor belt joint to break traditional ones, which makes the joint part more stable and long-lived.

Feature Of ZJ-M5 Belt Jointings

Quick change seamless conveyor belt connector” is a new rubber conveyor belts connection method. This method is a significant innovation in the field of conveyor belt joint, that has an advantage of fast assemble, high strength, low cost and long service life.

Advantage

1.No vulcanizing machine: mainly rely on hand drill/or air drill, explosion-proof electric drill (downhole) and other joints

2. High strength, cutting resistance, elasticity, heat and oil resistance, can be customized for special requirements

3. Can be mixed with different levels and cloth layer number of conveyor belt (example: six to seven levels, 3 to 4 layers)

4. Integrated design, do not leak the conveying material, no hinge (has great advantages over metal belt buckle)

5. Suitable for various sizes of drums and cleaners

Technical Data

Customized: Acid and alkali resistance, oil resistance, fire resistance, anti static etc

ZJ-M5 Belt Jointings
Order NO.	ZJ-M5S	ZJ-M5W
Width	350mm	350mm
Thickness	17/19/21mm	17/19/23mm
Applicable belt thickness	15-20mm	17-25mm
Applicable Belt Interlayer Thickness	4-7mm	7-10mm
Belt tension	1200-2200N/mm	1200-2200N/mm
Minimum pulley diameter	≥500 mm	≥500 mm

Product Application Details

应用场景_画板 1

Product Parameters

Main Ingredient	Ceramic/Rubber/Steel Plate	Lead Time	Ready to ship in stock
Model	ZJCER-MW	MOQ	20sqm
Colour	Black	Warranty	24 Months
Compressive Strength	1200-2500Mpa	Supply Capacity	8000sqm / month
Liner Shape	Customised sizes and shapes to suit site chute or silo conditions.	Certification	ISO9001;ISO14001;ISO45001;CE;UPEM
Product Construction	Steel plate + rubber + ceramic; rubber + ceramic; steel plate + ceramic	Packing	Pallet, wooden case
Sample	Provide	Delivery Time	50～100sqm，3-5days/200～500sqm，7-10days
Product Inspection	Available

Product Parameters

Order No.	Product Name	Dimension(mm)	Ceramic Size(mm)	Rubber Thickness(mm)	Plate Thickness(mm)
ZJCER-MW	Hexagonal Ceramic Liner	250*250	10105	10	5
ZJCER-MW	Hexagonal Ceramic Liner	400*400	171710	12	8
ZJCER-MW	Hexagonal Ceramic Liner	500*500	333315	15	10

FAQs

How long will your rubber sheets last?

Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.

How can I get some samples?

We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.

Can I visit your factory?

Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
