BAI-OTT Conveyor Belt Accessories Suppliers - 26 years of r&d of new splicing materials and rubber maintenance materials.

Industry Conveyor Belt Super Splicing Connector belt Jointings ZJ-M3 1

Industry Conveyor Belt Super Splicing Connector belt Jointings ZJ-M3 2

Industry Conveyor Belt Super Splicing Connector belt Jointings ZJ-M3

ZJ-M3 is a type of Slim and Lightweight. Conveyor belt seamless connection is a new type of conveyor belt connection.Seamless belt seam due to easy installation, high strength, low energy consumption, long service life and other advantages, is a major innovation in the field of belt seam.

Inquiry

Write a Review

Product Introduction

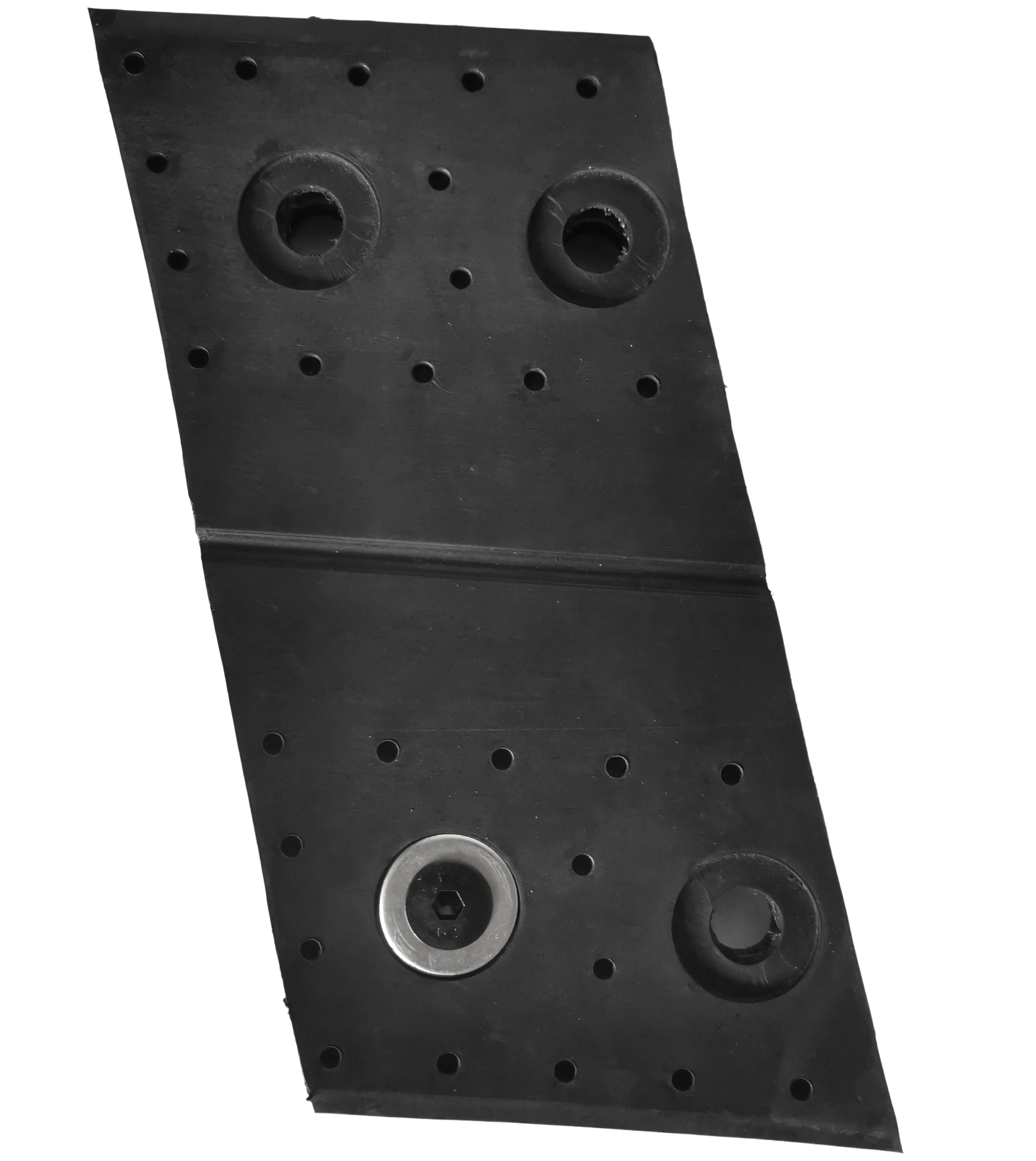

Conveyor Belt Super Splicing Connector belt Jointings ZJ-M3 is a Quick change seamless conveyor belt Screw super jointings connector is a new conveyor belt joint method that has invented by Zhengzhou Bai-OTT New Material Co.Ltd. This method is a significant innovation in the field of conveyor belt joint, that has an advantage of fast assemble, high strength, low cost and long service life.

Technical data

Style ： Slim and Lightweight

Connection type ： Oblique /Tilt

Specifications：length *200*12 (3)mm

Applicable belt thickness ： 5-13mm

Tension strength ： 600N/mm (Can up to 1200N/mm)

Rub resistance ： 15Mpa (Can up to 25 Mpa)

Working temperature ： Room temperature, high and low temperature resistance

Customized ： Acid and alkali resistance, oil resistance, fire resistance, etc.

Product Characteristic

Quickly: Belt fastener installment can be finished within 2 hours and ready to start work.
Stable: Operation technology is stable and reliable. Your workers can easily install belt fastener although without professional training.
Strong: The mechanical joint part with strong strength and long service life.
Saving: Easily repair and low cost with short joint length can saving time and belt materials.


installation

- without need of physical strength

- quick installation (saves downtime)

- under any weather conditions

- using battery or pneumatic operated screw driver, no need of electricity power

- no use/need of expensive equipment

- no need of highly skilled operator

- Compatible with conveyor scraper

- Perfect for tubular belt

- Leak proof

- Available on coil or «ready to use» cut lengths

- Many rubber qualities available

Bolts Screw

Highly resistive and is the choice for most applications such as coal mines, cement plants, quarries, power plants, etc

Bolts Screw

Stainless steel screws and washers are 316 non-magnetic and are used for corrosion and acid resistance, applications: gold mines, fertiliser plants, recycling facilities and sorting centres etc.

FAQ

Can I get samples from your factory?

Yes, sample is free, but the express charge is yours.

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

What’s the delivery time ?

Pattern needs 30-60 days, sample need 30-50 days. The first order need 60 days.

What is the standard of package?

Export standard package or special package according to customer requirement.

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, ISO14001,PED,SGS.
