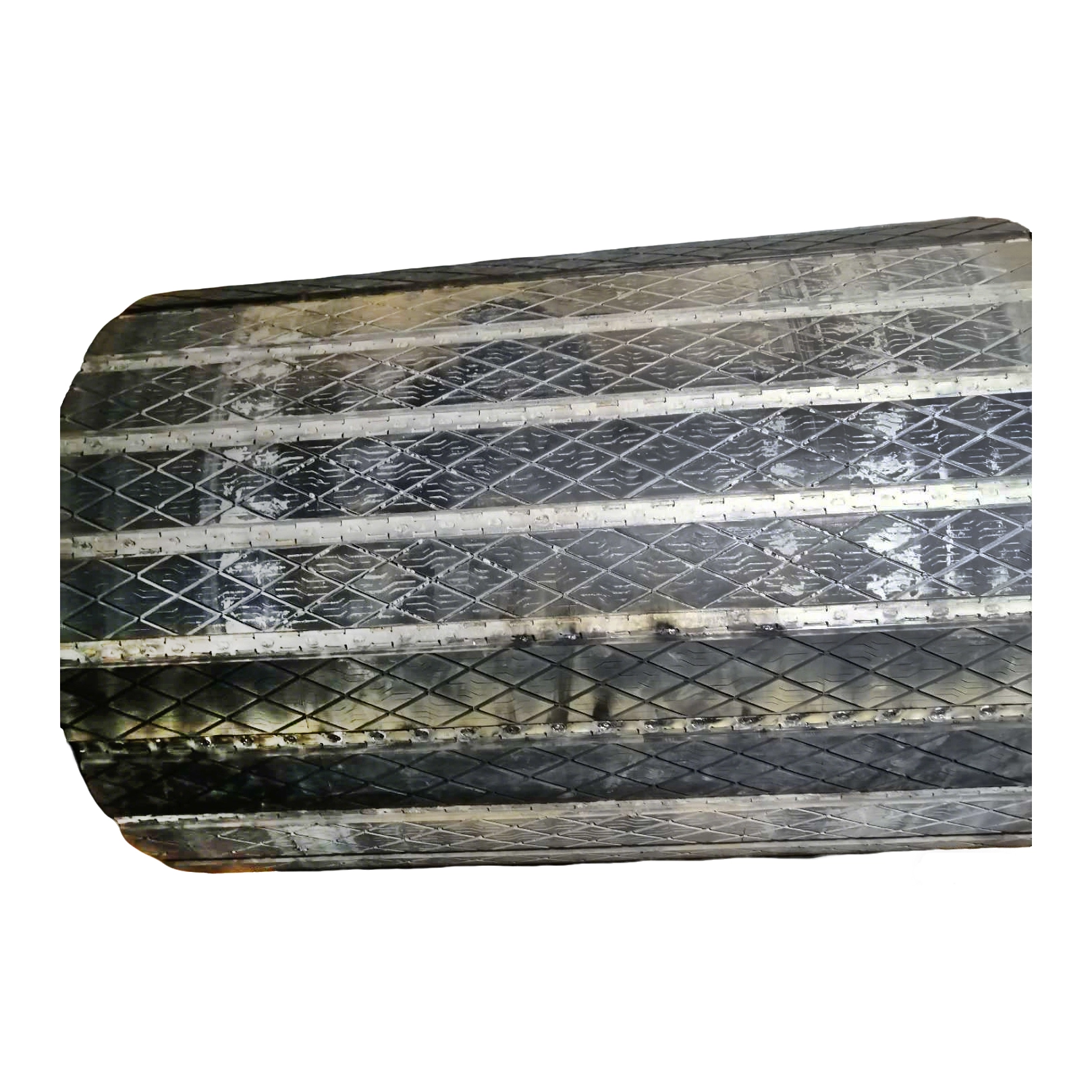

Diamond Cold Bonded Rubber Sheet (welding method)

Rubber raw materials with high elasticity and high wear resistance are used to prolong the service life of the drum; The unique diamond groove and z-groove improve the friction of the foot surface and assist the belt operation with greater traction.

The slide pulley lagging is composed of slide shell rubber cover and retainers. During installation, the retainer is welded on the drum and pressed against the slide shell rubber cover.The slide shell rubber cover is made of wear-resistant rubber layer and metal layer by thermal vulcanization, with thickness of 15mm and 20mm.

Inquiry

Write a Review

Product Advantages

● Wear resistance: It is made of high elasticity and high wear-resistant rubber raw materials.

● Friction: Diamond groove and z-groove assist the belt to operate, and the friction and traction force are doubled.

● Heat dissipation: The groove and the gap between the insert plates can play a good effect on heat dissipation and reduce the degree of friction heat.

● Adaptability: Meet the needs of cold resistance ,high temperature resistance, anti-static, anti flame retardant, non-toxic and other index requirements.

● Customized: Customized according to the drum size of different specifications and models to meet the needs of each diameter and length of drum.

● Low cost: reduce downtime, improve efficiency and reduce use cost.

● Easy installation: special strip welding, safe and stable, easy to operate.

● Fast maintenance: the drum does not need to be disassembled, installed on site and replaced at any time.

● Long service life: high-quality rubber raw materials, wear-resistant and antistatic, and longer service life.

Features

High Friction

Improve friction coefficient betweendrive pulley and conveyor belt.

Cn Bonding Layer

Enhance bonding strength between convyor pulley and rubber sheet.

Wear Resistant

Protection against wear and corrosion.

Product Details

尺寸

详情页平面04

Product Specifications

Order No.	Product Name	Dimension(mm)
ZJ-MRL-15	Weld On Pulley Lagging	1550010000
ZJ-MRL-20	Weld On Pulley Lagging	2050010000

Product Parameters

Raw Material	Steel+Rubber	CN Bonding	Available
Model	ZJ-MRL	Thickness	10/12/15/20mm
Hardness	60±5 shore A	Starting Quantity	20m²
Conveyor Belt Width	Variable	Warranty	24 months
Pulley Diameter	≥300mm	Supply Capacity	8000m²/month
Installation Method	On-site	Certification	ISO9001;ISO14001;ISO45001;CE;UPEM
Feature	Wear-Resistant	Packing	Pallet, wooden case
Color	Black	Delivery Time	50～100m²，3-5days/200～500m²，7-10days

FAQs

How long will your rubber sheets last?

Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.

How can I get some samples?

We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.

Can I visit your factory?

Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
